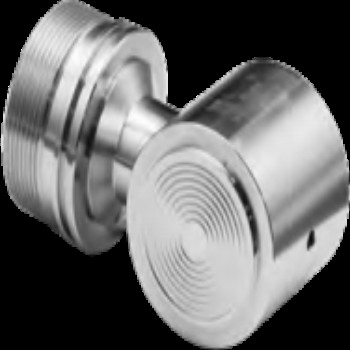

Sensori di pressione differenziale monocristallini a pressione statica elevata BW-DKS-DP600-M2 PA

  • BW-DKS-DP600-M2 PA Grade High Static Pressure Monocrystalline Silicon Differential Pressure Sensors
  • BW-DKS-DP600-M2 PA Grade High Static Pressure Monocrystalline Silicon Differential Pressure Sensors
  • BW-DKS-DP600-M2 PA Grade High Static Pressure Monocrystalline Silicon Differential Pressure Sensors
Luogo di origine Cina
Marca BEWIS
Numero di modello BW-DKS-DP600-M2
Quantità di ordine minimo 1
Prezzo $93
Termini di pagamento T/T

Contattimi gratis campioni e buoni.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Distanza 100kpa Sovrastanza unilaterale 25MPa
Pressione statica bilaterale 40 MPa Tempo di risposta 10 ms
Stabilità a lungo termine ≤ 0,03% FS/ anno Segnale di uscita 14 mV/V
Temperatura di funzionamento -40°C a 85°C Non lineare ≤ 0,16% FS
Coefficiente di temperatura ≤ 0,1% FS/10K
Lasciate un messaggio
Descrizione di prodotto

Il sensore di pressione differenziale BW-DKS-DP600 adotta un chip di sensore in silicio monocristallino realizzato con la tecnologia MEMS tedesca avanzata.e il progetto di sospensione a doppio raggio in silicio monocristallino originale al mondo, che raggiunge le prestazioni di sovrapressione leader a livello internazionale e garantisce l'eccellente stabilità del segnale.Incorporato con il diaframma di misurazione della pressione intelligente originale importato e il modulo di elaborazione del segnale, realizza la perfetta combinazione di pressione statica e compensazione della temperatura, che può fornire un'elevata precisione di misurazione e stabilità in un ampio intervallo di pressione e temperatura statica.
BW-DKS-DP600 Sensore di pressione differenziale è un sensore di pressione che agisce direttamente sul diaframma del sensore, causando il diaframma a produrre un micro spostamento proporzionale alla pressione,rilevando questa variazione con un circuito elettronico integrato e convertendo l'uscita in un segnale di misurazione standard corrispondente alla pressione.

Dimensioni del prodotto



■ Sensore di pressione differenziale con connessione all'alloggiamento M45 ■ Sensore di pressione differenziale con connessione all'alloggiamento G55
Sensori di pressione differenziale monocristallini a pressione statica elevata BW-DKS-DP600-M2 PA 0
Pschema di connessione rocess
Sensori di pressione differenziale monocristallini a pressione statica elevata BW-DKS-DP600-M2 PA 1

ModelloCodice delle specificheClarificazione
BW-DKS-DP600 Sensori di pressione differenziale al silicio monocristallino di grado PA



Distanza

(Capsula)


S2 ·········

M1 ························

M2 ·················

M4 ···············

L1 ····················



-6 kPa~6 kPa

-40 kPa~40 kPa

-100KPa~100KPa

-400 kPa~400 kPa

-3MPa~3MPa

Filtro di connessione a conchiglia

N00 ···········

M45 ········

G55 ·······················

M56 ····················

- No, no.

M45*1,5 filo

G55*16 filo

M56*1,5 filo


Diaframma di isolamento

SS ············

HC·····························································································································································································································································

TA ··············

GD ·············

SUS 316L

Hastelloy C-276

Tantalone

SUS 316L Dorato

Fluido di riempimento

S ······························································································································································································································································

F · ·····························································································································································································································································

O ···········································

Olio di silicone

Olio di fluoro

Olio vegetale

Sigillo del blocco di fissaggio

FS ·······

D.S. - - - - - - - - - - - - - - - - - - - - -

TS ·······

Fabbricazione a partire da materie plastiche

gomma nitrile

Polipropilene

Opzioni aggiuntiveSi prega di contattare le vendite
